Tuotetiedot

Runko

Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts

Etuhaarukka

Topstone Carbon, 1-1/8″ to 1.5″ steerer, 55mm OutFront offset, flat mount disc, internal routing, 12×100 thru-axle, triple bottle/gear mounts, fender mounts

Vanteet

WTB KOM Team i25 TCS, 28h, tubeless ready

Etunapa

Shimano TC500, 12x100mm centerlock

Takanapa

Shimano TC500, 12x142mm centerlock

Pinnat

Stainless Steel, 14g

Renkaat

WTB Riddler TCS Light, 700x45c, tubeless ready

Polkimet

Not included

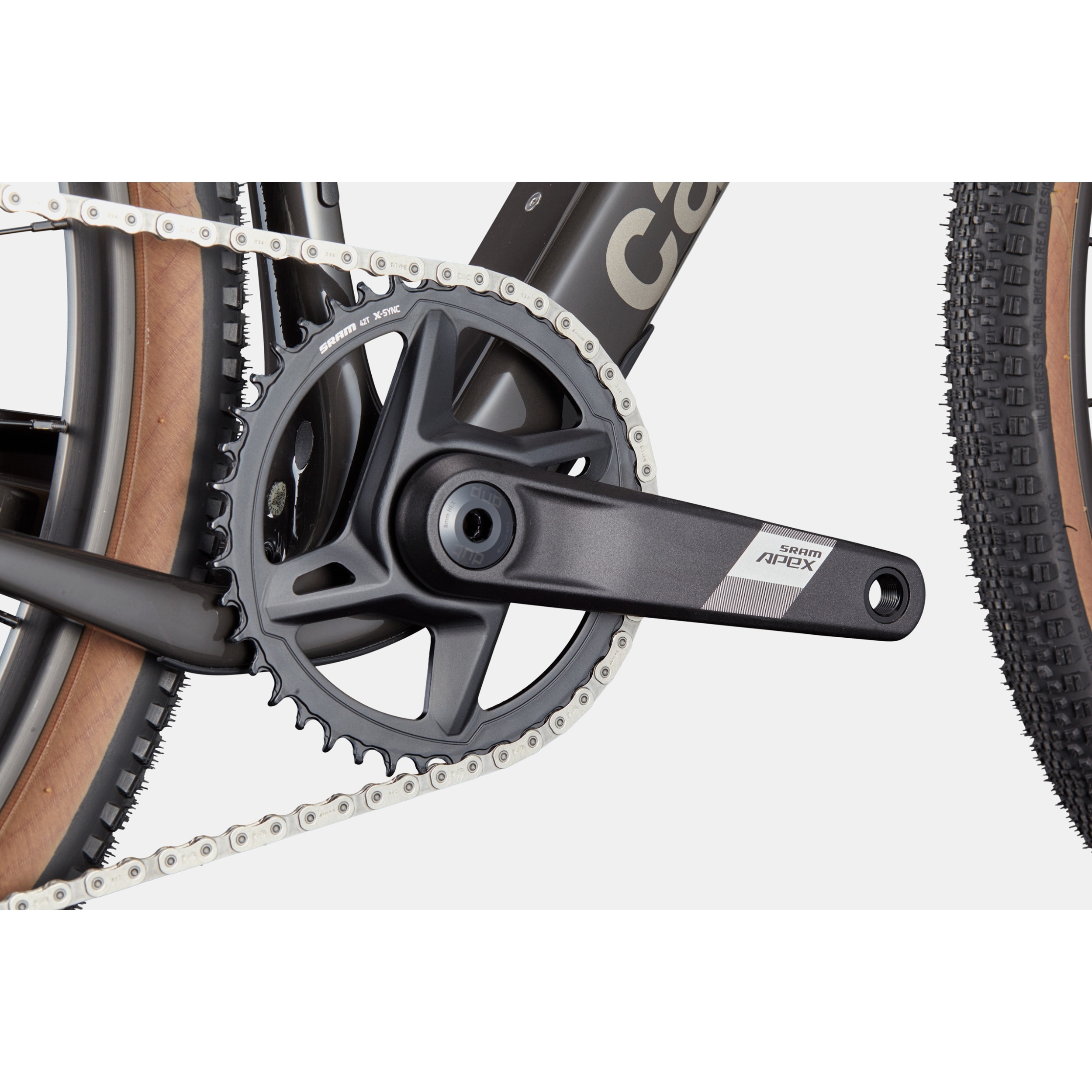

Kampisarja

SRAM Apex DUB Wide, 42T

Keskiö

SRAM DUB BSA Road 68 Wide

Ketjut

SRAM GX Eagle Transmission, 12-speed

Rataspakka

SRAM XS-1270, 10-52, T-Type, 12-speed

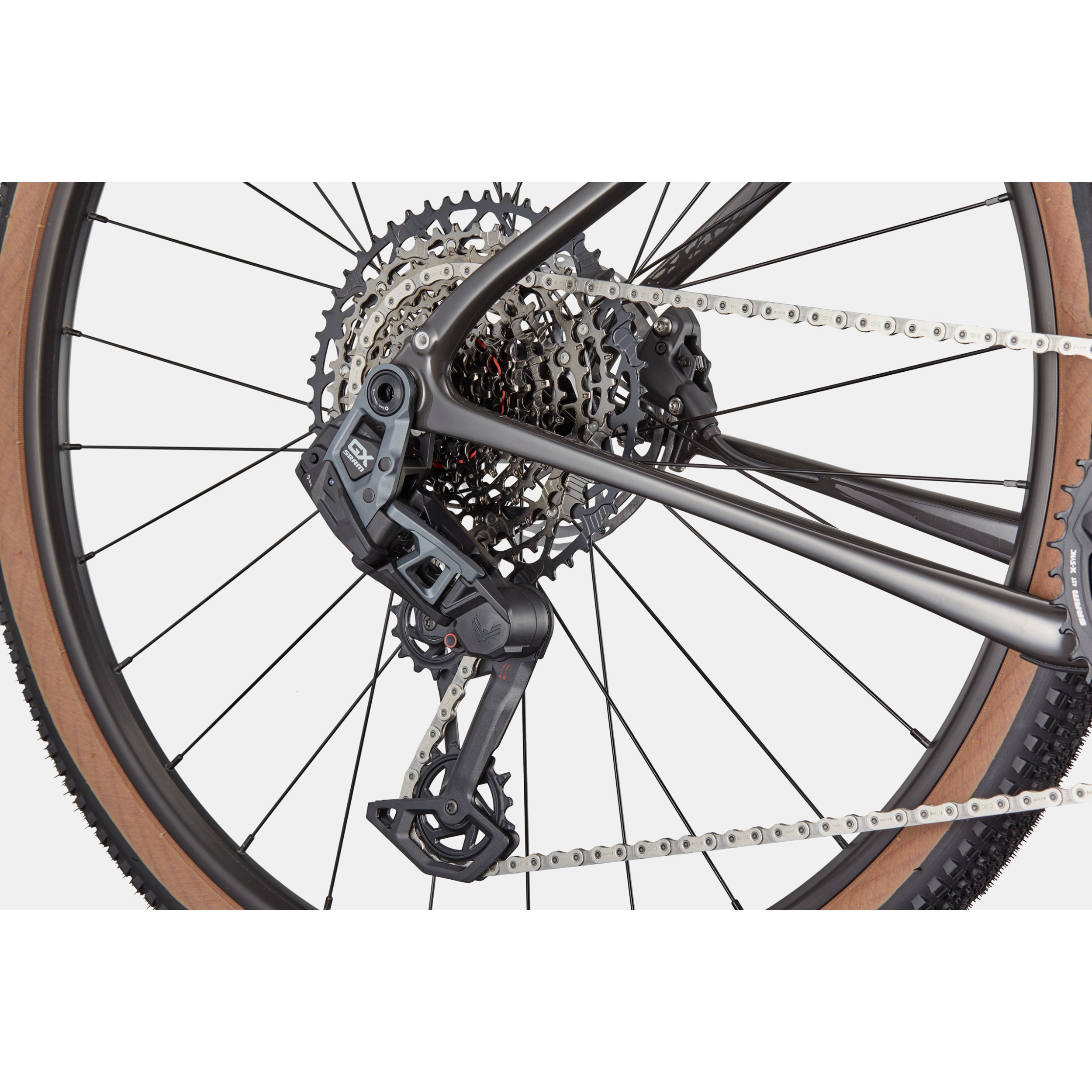

Takavaihtaja

SRAM GX Eagle AXS, T-Type

Vaihtajat

SRAM Apex AXS, 12-speed

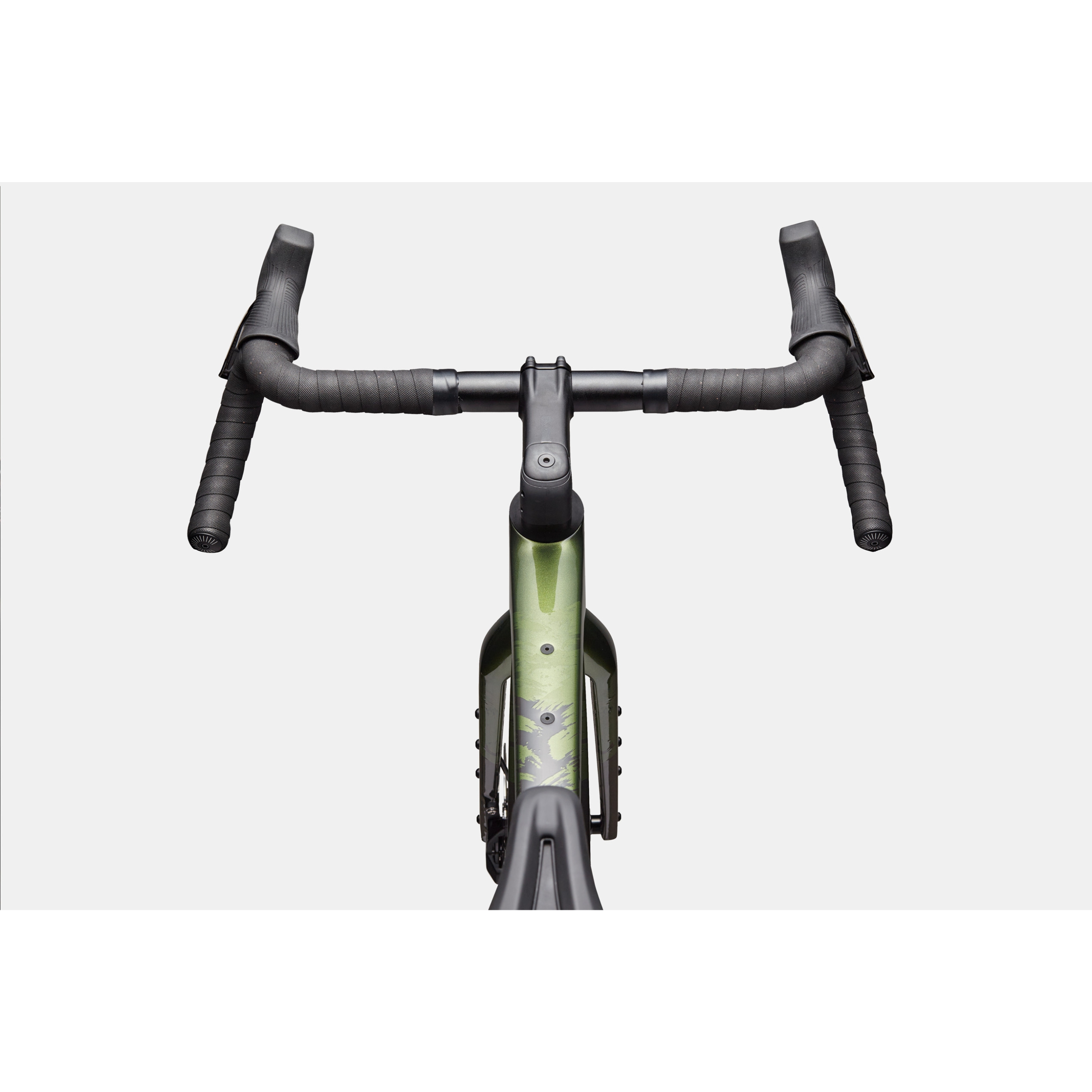

Ohjaustanko

Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop

Kädensijat

Cannondale KnurlCork, 2.7mm

Ohjainkannatin

Cannondale C1 Conceal, Alloy, 31.8, -6°

Ohjainlaakeri

Acros IS52/40 ICR

Jarrut

SRAM Apex hydraulic disc, 160/160mm CenterLine centerlock rotors

Jarrulevyt

SRAM Apex AXS hydraulic disc

Satula

Fizik Terra Argo X7

Satulaputki

Cannondale 2 Carbon, 27.2x350mm (47-58), 400mm (61)

Muut

Large StashBag downtube storage bag, tubeless valve stems, SRAM AXS charger, Cannondale Wheel Sensor

Koot

51, 54 ja 56

Cannondalen kokosuositukset

Värit

Spruce Green (vihreä)

Vuosimalli

2025

Huom! Komponenttimuutokset mahdollisia ilman erillistä ilmoitusta.

Tekniset ominaisuudet

KingPin

Our innovative gravel rear suspension is light, simple, and effective. A thru-axle pivot in the seat tube allows the rear triangle and seatpost of the bike to flex vertically, delivering up to 30mm of bump-smoothing travel.

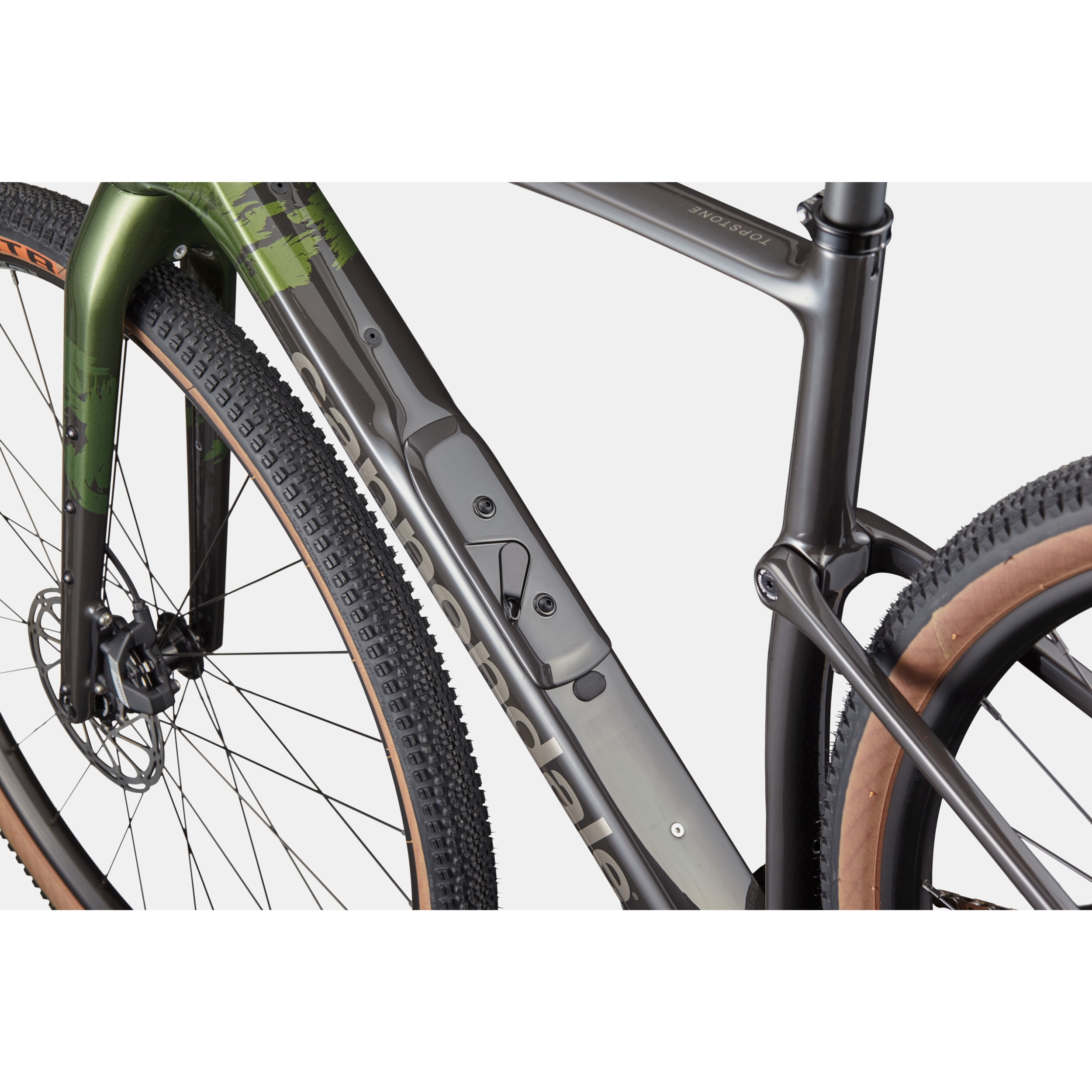

StashPort + StashBag

StashPort is our take on a downtube storage system, accessed beneath the water bottle cage. Every bike includes StashBag, a specially designed bag for your essentials.

Tire Clearance

Topstone Carbon fits tires with a maximum measured width of up to 52mm for the frame and 56mm for the rigid fork.

Proportional Response

Tuned for the rider, our size-specific construction creates optimal stiffness and compliance for each frame size. So, every rider benefits from the ideal ride feel and comfort of KingPin.

Tidy Does It

Internal cable routing throughout the frame, combined with Conceal Stem, delivers a tidy, integrated look.

OutFront Steering Geometry

Confident stability meets nimble agility. An extra long fork offset paired with a slack head angle keeps the steering light and lively, yet delivers unreal confidence at speed and in the rough stuff.

Dropper Ready

Built to accept an internally-routed 27.2 dropper seatpost, which shouldn’t be a surprise on a bike this capable.
